CHAPTER 2CHAPTER 2

CHAPTER 2

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-36

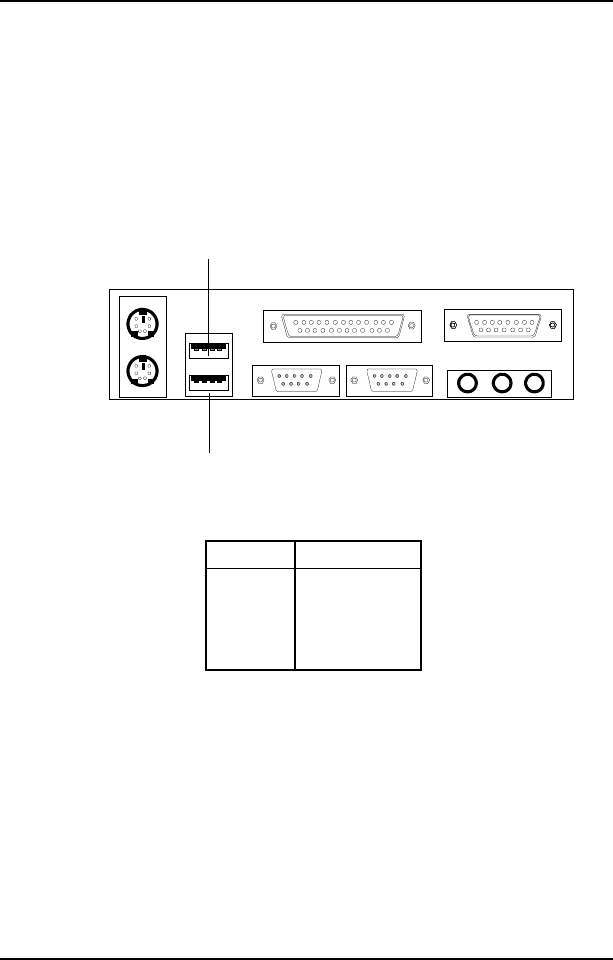

2.15 USB Connectors

The mainboard provides a UHCI(Universal Host Controller Interface)

Universal Serial Bus root for attaching USB devices like: keyboard, mouse

and other USB devices. You can plug the USB device directly to this

connector.

USB Port 2

USB Port 1

PIN SIGNAL

1 VCC

2 -Data0

3 GND

4 +Data0

1 2 3 4
